C25、D25系列高壓重載液壓油缸

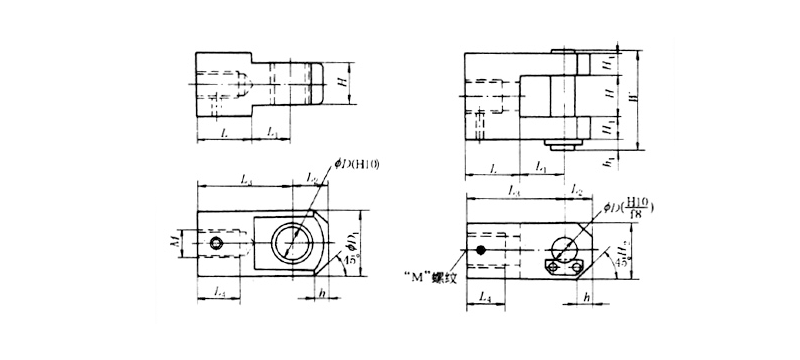

單耳環、雙耳環端部零件
| 單、雙耳環 | 單耳環 | 雙耳環 | 端部零件重量/kg | ||||||||||||||||||||||
| 缸徑 | 桿標記 | M | L4 | L3 | L1 | D | D1 | L2 | H | h | L | L4 | L3 | L1 | D | H2 | L2 | H1 | H | h1 | W | h | L | 單耳環 | 雙耳環 |
| 32 | B | M16 × 1.5 |
34 | 60 | 23 | 16 | 39 | 20 | 25 -0.1 -0.4 |
8 | 37 | 33 | 60 | 27 | 16 | 32 | 16 | 12.5 | 25 +0.1 +0.4 |
12 | 68 | 4 | 33 | 0.5 | 0.6 |
| C | M12 ×1.25 |
27 | 33 | 0.5 | 0.6 | ||||||||||||||||||||
| 40 | B | M20 × 1.5 |
39 | 60 | 23 | 16 | 39 | 20 | 25 -0.1 -0.4 |
8 | 37 | 33 | 60 | 27 | 16 | 32 | 16 | 12.5 | 25 +0.1 +0.4 |
12 | 68 | 4 | 33 | 0 | 0 |
| C | M16 × 1.5 |
34 | 33 | 0.5 | 0.6 | ||||||||||||||||||||
| 50 | B | M24 × 1.5 |
44 | 70 | 28 | 20 | 49 | 25 | 31.5 -0.1 -0.4 |
10 | 42 | 38 | 70 | 32 | 20 | 40 | 20 | 16 | 31.5 +0.1 +0.4 |
12 | 80 | 10 | 38 | 0.9 | 1.0 |
| C | M20 × 1.5 |
39 | 38 | 0.9 | 1.1 | ||||||||||||||||||||
| 63 | B | M30 × 1.5 |
50 | 115 | 43 | 31.5 | 62 | 35 | 40 -0.1 -0.4 |
15 | 72 | 50 | 115 | 50 | 31.5 | 60 | 30 | 20 | 40 +0.1 +0.4 |
12 | 98 | 12 | 65 | 2.4 | 3.4 |
| C | M24 × 1.5 |
44 | 40 | 2.5 | 3.5 | ||||||||||||||||||||
| 80 | B | M39 × 1.5 |
65 | 115 | 43 | 31 .5 |
62 | 35 | 40 -0.1 -0.4 |
15 | 72 | 65 | 115 | 50 | 31.5 | 60 | 30 | 20 | 40 +0.1 +0.4 |
12 | 98 | 12 | 65 | 2.1 | 3.1 |
| C | M30 × 1.5 |
50 | 50 | 2.4 | 3.4 | ||||||||||||||||||||
| 100 | B | M48 × 1.5 |
80 | 145 | 55 | 40 | 79 | 40 | 50 -0.1 -0.4 |
20 | 90 | 85 | 145 | 60 | 40 | 80 | 40 | 25 | 50 +0.1 +0.4 |
18 | 125 | 15 | 85 | 4.2 | 7.0 |
| C | M39 × 1.5 |
65 | 65 | 4.8 | 7.5 | ||||||||||||||||||||
| 125 | B | M64 × 2.0 |
100 | 180 | 65 | 50 | 100 | 50 | 63 -0.1 -0.4 |
25 | 115 | 100 | 180 | 70 | 50 | 100 | 50 | 31.5 | 63 +0.1 +0.4 |
18 | 150 | 20 | 110 | 8.4 | 13.4 |
| C | M48×1.5 | 80 | 80 | 9.8 | 14.8 | ||||||||||||||||||||
| 140 | B | M72 × 2.0 |
115 | 225 | 85 | 63 | 130 | 65 | 80 -0.1 -0.6 |
30 | 140 | 115 | 225 | 90 | 63 | 120 | 65 | 40 | 80 +0.1 +0.6 |
18 | 185 | 25 | 135 | 19.0 | 26.4 |
| C | M56 × 2.0 |
85 | 85 | 21.1 | 28.5 | ||||||||||||||||||||
| 150 | B | M76 × 2.0 |
120 | 225 | 85 | 63 | 130 | 65 | 80 -0.1 -0.6 |
30 | 140 | 120 | 225 | 90 | 63 | 120 | 65 | 40 | 80 +0.1 +0.6 |
18 | 185 | 25 | 135 | 16.8 | 24.2 |
| C | M60 × 2.0 |
90 | 90 | 19.7 | 27.1 | ||||||||||||||||||||
| 160 | B | M80 × 2.0 |
125 | 240 | 90 | 71 | 140 | 70 | 80 -0.1 -0.6 |
35 | 150 | 125 | 240 | 100 | 71 | 140 | 70 | 40 | 80 +0.1 +0.6 |
18 | 185 | 30 | 140 | 22.4 | 32.1 |
| C | M64 × 2.0 |
100 | 100 | 24.8 | 34.5 | ||||||||||||||||||||
